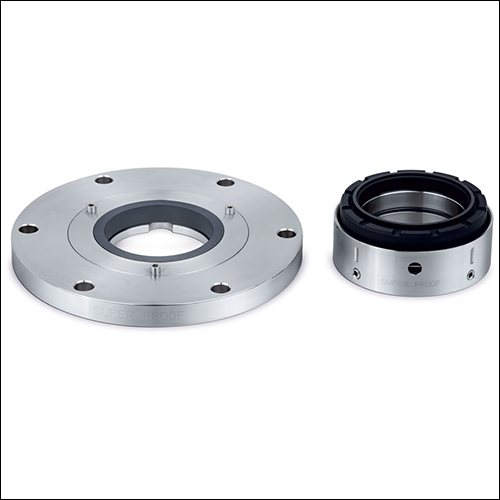

Dry Running Seal-SPD105 and SPD105B

Dry Running Seal-SPD105 and SPD105B have been specially developed for glass lined vessel application purpose. This ergonomic seal is especially sued to handle high pressure fluids stored in vessels to resist leakage of acidic fluid or gas. This factory assembled dry running seal can be installed quickly to handle process gas and fluids with highly acidic content. Dry Running Seal-SPD105 and SPD105B deserve praise for their application specific design, long lasting quality and ability to resist thermal pressure and compressive load. Dry running seal is offered with cooling jacket to meet specific application requirement.

Material

• Seal Ring Faces : Carbon and SiC
• Seat Faces : SiC and Ceramic
• Elastomer : Viton, TTV, FEP and FFKM
• MOC : SS 316  CHANGE OF MOC ON REQUEST

• Shaft Dia. : 20mm to 150mm
• Pressure : Full Vacuum to 8 bar
• Temperature : -30 degree C to 150 degree C
• Speed: 250 r.p.m.
